Dashboard Examples¶
Examples above are shown in the default dark theme however they should work for most themes. They might require a couple of tweaks here and there. I prefer the excellent Noctis theme
See the YAML...
This is the code used to create the examples in the gif above, with example entity names.
- type: vertical-stack
cards:
- type: custom:button-card
template: title
name: Creative Button-Card Templates
icon: mdi:cards-outline
variables:
background_color: '#7b54bf'
- type: horizontal-stack
cards:
- type: vertical-stack
cards:
- type: custom:button-card
template: button_action
entity: script.example_action
variables:
timer: timer.example_timer
name: Action Button
- type: custom:button-card
template: select
entity: input_select.example_selector
- type: custom:button-card
template:
- climate
entity: climate.air_conditioner
name: Climate
icon: mdi:fan
- type: custom:button-card
template:
- entity
entity: switch.smart_plug
name: Entity
icon: mdi:power-socket-au
variables:
debug: true
attributes:
- icon: mdi:sine-wave
entity: "[[[ return variables.$childEntityId('voltage'); ]]]"
- icon: mdi:alien
state: 'Custom '
units: Attribute
- type: vertical-stack
cards:
- type: custom:button-card
template: cover
entity: cover.window_blinds
name: Cover
- type: custom:button-card
template: title
name: Lights
icon: mdi:lamps
styles:
card:
- margin-top: 5px;
- type: custom:button-card
template:
- light_group
entity: light.room_lights
name: Light Group
icon: mdi:lightbulb-multiple
variables:
show:
effect_selector: true
theme_selector: true
items:
- entity: light.ceiling_light_1
symbol: E1
- entity: light.ceiling_light_2
symbol: E2
- entity: light.wall_light_1
symbol: W1
- entity: light.wall_light_2
symbol: W2
- entity: light.accent_strip
symbol: mdi:desk-lamp
- entity: light.floor_lamp
icon: mdi:floor-lamp-dual
- type: custom:button-card
template: light_motion
entity: light.floor_lamp
name: Light & Motion
variables:
motion_entity: binary_sensor.entry_motion_occupancy
active_entity: input_boolean.motion_active
- type: custom:gap-card
height: 50
- type: vertical-stack
cards:
- type: horizontal-stack
cards:
- type: custom:button-card
template: title
name: "Mini Buttons"
icon: mdi:arrow-right
- type: custom:button-card
template:
- button_mini
- dynamic_icons
color_type: card
color: "#9d3042"
entity: input_boolean.do_not_disturb
variables:
icon: mdi:bell
icon_on: mdi:bell-off
width: 60px
- type: custom:button-card
template: button_mini_power_area
icon: mdi:power
variables:
area: living_room
width: 60px
- type: custom:button-card
template: title
name: Value Strips
icon: mdi:led-strip
- type: grid
columns: 2
square: false
cards:
- type: custom:button-card
template:
- value_strip
- debug
variables:
type: brightness
show:
icon: false
step_value: true
entity: light.floor_lamp
- type: custom:button-card
template:
- value_strip
- debug
- transparent
variables:
type: adaptive_lighting
al_area_id: living_room
show:
icon: true
step_value: true
- type: custom:button-card
template:
- value_strip
- debug
- transparent
variables:
type: adaptive_lighting
al_area_id: living_room
show:
icon: true
step_value: false
- type: custom:button-card
template:
- value_strip
- debug
entity: cover.window_blinds
variables:
type: cover
show:
icon: true
step_value: true
fade: false
- type: horizontal-stack
cards:
- type: custom:button-card
template: title
name: Info Cards
icon: mdi:information-outline
- type: custom:button-card
template:
- info_mini
- transparent
variables:
state: 99
units: win
icon: mdi:trophy
- type: custom:button-card
template: info
variables:
items:
- entity_id: sensor.room_temperature
name: Custom Color
color: '#e04632'
decimals: 2
- entity_id: cover.window_blinds
attribute: current_position
units: 'ATTRIBUTE '
prefix_units: true
- icon: mdi:lightbulb-variant
name: No Entity
state: 'Custom'
- type: custom:button-card
template:
- info
- transparent
variables:
items:
- entity_id: sensor.room_temperature
name: Rounding
decimals: 0
- icon: mdi:cash
name: Currency
state: '47.3'
units: '$'
color: "#00b59d"
- entity_id: binary_sensor.door_contact
name: "Sensor"
color: "#febe6e"
state: "[[[[ return entity.state === 'off' ? 'Closed' : 'Open' ]]]]"
- entity_id: input_number.circulation_frequency
name: Custom Icon
icon: mdi:clock-outline
- type: horizontal-stack
cards:
- type: custom:button-card
template:
- info_mini
- transparent
variables:
attribute: current_position
units: 'SPIN'
state: '↻'
spin: true
icon_color: 'rgba(247, 138, 80, 0.2)'
icon: mdi:fan
- type: custom:button-card
template:
- info_mini
- transparent
entity: cover.window_blinds
icon: mdi:chart-pie
variables:
icon_color: 'rgba(157, 48, 66, 0.4)'
layout: inline
attribute: current_position
units: '%'
- type: custom:button-card
template:
- info_mini
entity: input_number.circulation_frequency
icon: mdi:clock-time-nine-outline
- type: custom:button-card
template: title
name: Info Mini
icon: mdi:arrow-left
variables:
mirror: true

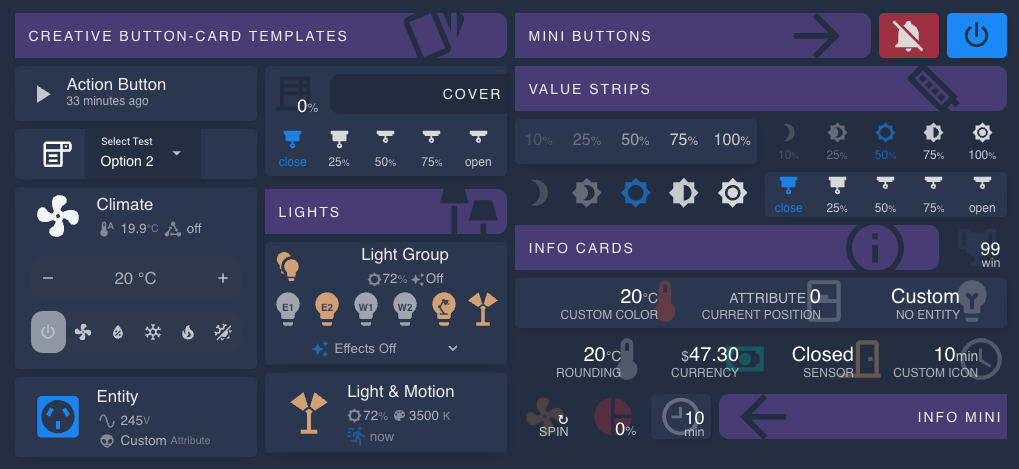

Noctis Example¶
